INSPECTION <COLT>


SEAT BELT SWITCH CONTINUITY CHECK (DRIVER’S SIDE)

Item
 Tester connection
 Specified condition
Fastened seat belt
 1 - 2
 Open circuit
Unfastened seat belt
 Continuity (Less or 2 Ω)

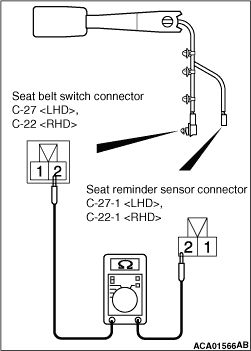

SEAT BELT SWITCH CONTINUITY CHECK (PASSENGER’S SIDE)


<LHD>
Item
 Tester connection
 Specified condition
Fastened seat belt
 Connector C-27 (terminal No.2) - C-27-1 (terminal No.2)
 Open circuit
Unfastened seat belt
 Continuity (Less or 2 Ω)

<RHD>
Item
 Tester connection
 Specified condition
Fastened seat belt
 Connector C-22 (terminal No.2) - C-22-1 (terminal No.2)
 Open circuit
Unfastened seat belt
 Continuity (Less or 2 Ω)

SEAT REMINDER SENSOR (PASSENGER’S SIDE) CHECK

Item
 Tester connection
 Specified condition
When a weight of 5 kg is placed on the centre at of seat occupancy sensor
 1 - 2
 Continuity (Less or 2 Ω)
When no weight is placed on the seat occupancy sensor
 1 - 2
 Open circuit
