| Item |
Tester connection |
Specified condition |
| Fastened seat belt |
1 - 2 |
Open circuit |
| Unfastened seat belt |
Continuity (Less than 10 Ω) |

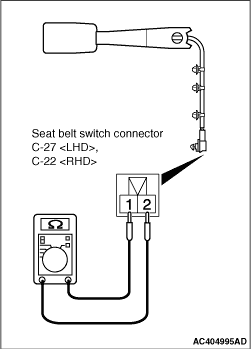

SEAT BELT SWITCH CONTINUITY CHECK (DRIVER’S SIDE) |
|
|
SEAT BELT SWITCH CONTINUITY CHECK (PASSENGER’S SIDE) |
) |
|
