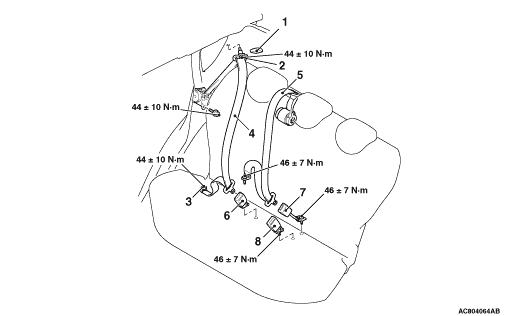

| Removal steps |
|||
| 1. |
Rear seatbelt sash guide cover |
||
| 2. |
Rear seatbelt shoulder anchor bolt |
||
| 3. |
Rear seatbelt lower anchor bolt |
||
| · |
Lower quarter trim (Refer to  <COLT> <COLT CZ3>). |
||
| 4. |
Rear seatbelt outer |
||
| 5. |
Rear seatbelt outer centre |
||
| 6. |
Rear seatbelt inner RH |
||
| 7. |
Rear seatbelt inner centre |
||
| 8. |
Rear seatbelt inner LH |
