REMOVAL AND INSTALLATION <COLT CZ3>
caution
SRS: Before removing and installing the seat belts with pre-tensioner, refer to GROUP 52B, Service Precautions
and Seat Belt with Pre-tensioner
.

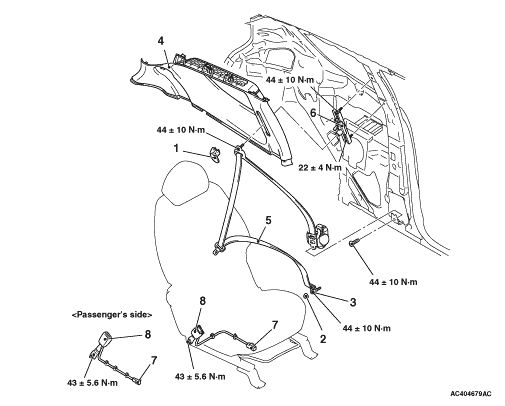

Outer seat belt removal steps
1.
Sash guide cover
2.
Cap
3.
Seat belt lower anchor bolt
4.
Upper quarter trim (Refer to
).
5.
Outer seat belt (Refer to GROUP 52B, Seat Belts with Pre-tensioner
).
6.
Adjustable seatbelt anchor
Inner seat belt removal steps
7.
Seat belt switch connector
·
Hinge cover (Refer to
).
8.
Front seatbelt inner
and Seat Belt with Pre-tensioner . and Seat Belt with Pre-tensioner .)
