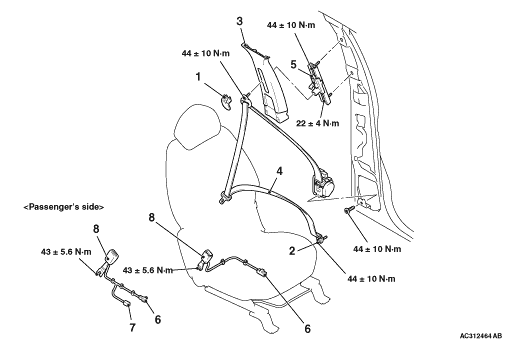

Outer seat belt removal steps
|
|
|
1.
|
Sash guide cover
|
|
|
·
|
Centre pillar trim lower (Refer to  ).
|
|
|
2.
|
Seat belt lower anchor bolt
|
|
|
3.
|
Upper centre pillar trim (Refer to ).
|
|
|
4.
|
Outer seat belt (Refer to GROUP 52B, Seat Belts with Pre-tensioner ).
|
|
|
5.
|
Adjustable seatbelt anchor
|
|
|
|
Inner seat belt removal steps
|
|
|
6.
|
Seat belt switch connector
|
|
|
·
|
Reclining adjuster cover (Refer to ).
|
|
|
7.
|
Seat reminder sensor (Passenger’s side)
|
|
|
8.
|
Front seatbelt inner
|
)
