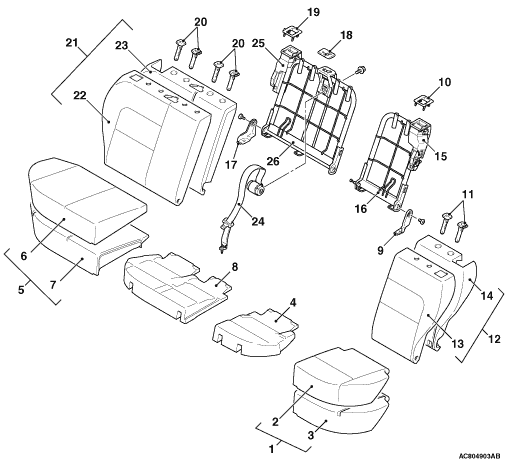

Rear seat cushion assembly <LH> disassembly steps
|
|
|
1.
|
Rear seat cushion cover & pad <LH>
|
|
|
2.
|
Rear seat cushion cover <LH>
|
|
|
3.
|
Rear seat cushion pad <LH>
|
|
|
4.
|
Rear seat cushion frame assembly <LH>
|
|
|
|
Rear seat cushion assembly <RH> disassembly steps
|
|
|
5.
|
Rear seat cushion cover & pad <RH>
|
|
|
6.
|
Rear seat cushion cover <RH>
|
|
|
7.
|
Rear seat cushion pad <RH>
|
|
|
8.
|
Rear seat cushion frame assembly <RH>
|
|
|
|
Rear seatback assembly <LH> disassembly steps
|
|
|
9.
|
Rear seat hinge bracket <LH>
|
|
|
10.
|
Rear seat side hinge garnish <LH>
|
<<A>>
|
|
11.
|
Rear seat headrestraint guide
|
|
|
12.
|
Rear seatback cover & pad <LH>
|
|
|
13.
|
Rear seatback cover <LH>
|
|
|
14.
|
Rear seatback pad <LH>
|
|
|
15.
|
Rear seatback frame <LH>
|
|
|
16.
|
Rear seat side hinge <LH>
|
|
|
|
Rear seatback assembly <RH> disassembly steps
|
|
|
17.
|
Rear seat hinge bracket <RH>
|
|
|
18.
|
Rear seatbelt guide
|
|
|
19.
|
Rear seat side hinge garnish <RH>
|
<<A>>
|
|
20.
|
Rear seat headrestraint guide
|
|
|
21.
|
Rear seatback cover & pad <RH>
|
|
|
22.
|
Rear seatback cover <RH>
|
|
|
23.
|
Rear seatback pad <RH>
|
|
|
24.
|
Rear seatbelt outer centre
|
|
|
25.
|
Rear seat side hinge <RH>
|
|
|
26.
|
Rear seatback frame <RH>
|
)
)
