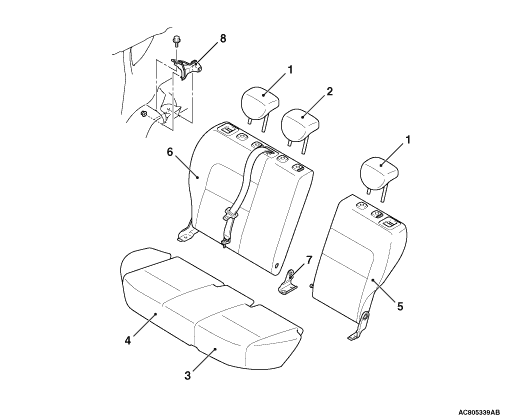

Removal steps
|
|
|
1.
|
Rear seat headrestraint
|
|
|
2.
|
Rear seat headrestraint <Vehicles with headrestraint>
|
|
|
3.
|
Rear seat cushion assembly <LH>
|
|
|
4.
|
Rear seat cushion assembly <RH>
|
|
|
·
|
Rear seatbelt lower anchor bolt <LH> (Refer to  ).
|
|
|
5.
|
Rear seatback assembly <LH>
|
|
|
·
|
Rear seatbelt lower anchor bolt <RH>, Rear seatbelt inner <RH> (Refer to ).
|
|
|
6.
|
Rear seatback assembly <RH>
|
|
|
·
|
Rear seatbelt inner centre, Rear seatbelt inner <LH> (Refer to ).
|
|
|
7.
|
Rear seat hinge bracket centre
|
|
|
·
|
Lower quarter trim (Refer to <COLT> <COLT CZ3>).
|
|
|
8.
|
Striker rear seat assembly bracket
|
)
