DISASSEMBLY AND REASSEMBLY

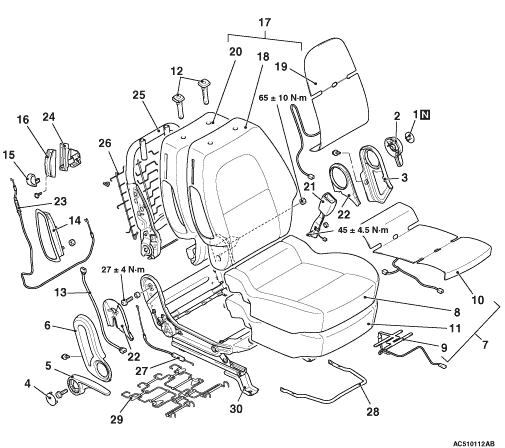

Disassembly steps 1. Reclining adjuster lever cap 2. Reclining adjuster lever 3. Hinge cover 4. Height adjuster lever cap <Vehicles with height adjuster> 5. Height adjuster lever <Vehicles with height adjuster> 6. Side shield cover 7. Seat cushion assembly <<A>> 8. Seat cushion cover 9. Reminder sensor (RH) 10. Seat cushion heater <Vehicles with heated seat> 11. Seat cushion pad <<B>> 12. Headrestraint guide 13. Side-airbag module harness <Vehicles with side-airbag> 14. Side-airbag module <Vehicles with side-airbag> 15. Easy access lever <COLT CZ3> 16. Easy access lever garnish <COLT CZ3> 17. Seatback assembly <<A>> 18. Seatback cover 19. Seatback heater <Vehicles with heated seat> 20. Seatback pad 21. Inner seat belt 22. Inner side shield cover 23. Easy access cable <COLT CZ3/> 24. Easy access lever bracket <COLT-CZ3> 25. Seatback frame 26. Seatback suspension 27. Easy access slide cable <COLT-CZ3> 28. Slide adjuster lever 29. Seat cushion suspension 30. Seat cushion frame

Cut the cover along the dashed line in the illustration, and slide the resin part remaining on the pad side to remove it from the clip.

Peel off the rear seatback cover and pad to access the headrestraint guides. Pull off the guides upwards while pushing the tabs (arrows) as shown.
