REMOVAL AND INSTALLATION

caution

For the removal of the front seat assembly on vehicles with the side-airbags, refer to GROUP 52B, Service Precautions

and Side and Curtain Air Bag Module

	·	Heated seat switch <Vehicles with heated seat> (Refer to ).
	1.	Headrestraint

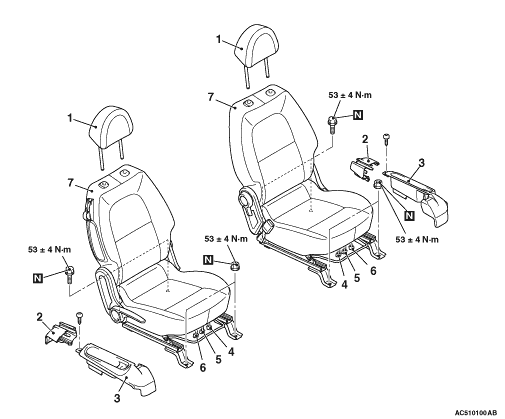

		Removal steps
	·	Heated seat switch <Vehicles with heated seat> (Refer to ).
	1.	Headrestraint
	2.	Storage box rear <Vehicles with storage box>
	3.	Storage box front <Vehicles with storage box>
	4.	Seat heater connector <Vehicles with heated seat>
	5.	Seat belt switch connector
	6.	Side-airbag module connector <Vehicles with side-airbag>
>>A<<	7.	Front seat assembly

INSTALLATION SERVICE POINT

>>A<< FRONT SEAT ASSEMBLY INSTALLATION

1.Confirm that the seat slide is locked. Replace the mounting nuts and bolts with a new one. Then temporarily tighten all the nuts and bolts with no load applied to the front seat cushion.
2.Tighten all the nuts and bolts to the specified torque.
Tightening torque:
Bolt: 53 ± 4 N·m
Nut: 53 ± 4 N·m
