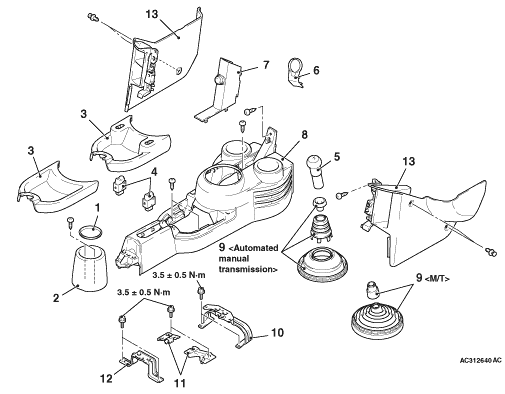

| Removal steps |
|||
| 1. |
Floor console plug |
||
| 2. |
Cup holder |
||
| 3. |
Floor console panel |
||
| 4. |
Seat heater switch <Vehicles with heated seat> |
||
| 5. |
Gearshift knob |
||
| 6. |
Accent panel |
||
| 7. |
Floor console accessory panel |
||
| 8. |
Floor console |
||
| 9. |
Gearshift lever cover |
||
| 10. |
Floor console front bracket |
||
| 11. |
Floor console bracket |
||
| 12. |
Floor console rear bracket |
||
| 13. |
Console side cover |
