REMOVAL AND INSTALLATION



warning For removal and installation of the passenger’s (front) air bag module, always observe the service procedures described in GROUP 52B, Driver’s, Front Passenger’s Air Bag Module(s) and Clock Spring .
The following screws are used for installing the instrument panel. Screws are indicated as marks shown in the illustration in the section of "Removal and Installation."
Name
Symbol
Size (D × L) mm
Shape
Tapping screw
a
4.2 × 13


b
5 × 16


c
5 × 16


Torx screw
d
6 × 16



caution
  • Refer to GROUP 52B, SRS Service Precautions and Driver’s, Front Passenger’s Air bag Module(s) and Clock Spring before removing the passenger (front) air bag module.
  • Do not subject the SRS-ECU to any shocks when removing or installing the instrument panel.
Pre-removal and Post-installation Operation
  • Removal and Installation of Floor Console, Floor Console Side Cover (Refer to ).
  • Removal and Installation of Front Pillar Trim, Cowl Side Trim (Refer to <COLT>, <COLT CZ3>).

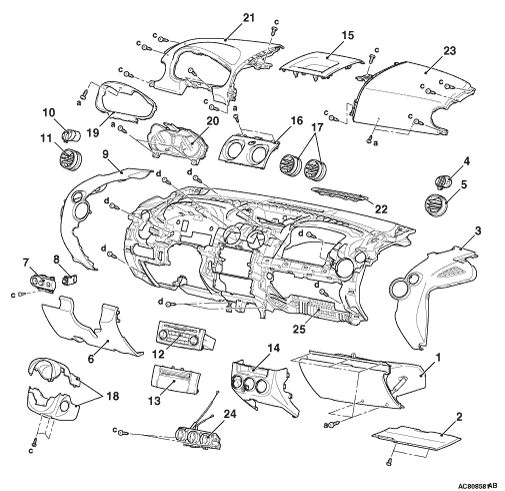

Removal steps


1.
Glove box assembly


2.
Under cover (passenger’s side)


3.
Side cover (RH)


4.
Defroster side window ventilation (RH)


5.
Side air outlet (RH)


6.
Under cover (driver’s side)


7.
Switch bezel assembly


8.
AS&G switch


9.
Side cover (LH)


10.
Defroster side window ventilation (LH)


11.
Side air outlet (LH)


12.
Radio with CD player <Vehicles with radio with CD player>


13.
Radio blind panel <Vehicles without radio with CD player>


14.
Instrument panel centre lower panel assembly


15.
Instrument panel tray


16.
Instrument panel centre upper panel assembly


17.
Centre air outlet


18.
Steering column cover


19.
Combination meter bezel


20.
Combination meter assembly


21.
Instrument panel pad (LH)


22.
Defroster garnish


·
Air bag module (squib) (passenger’s side) harness connector


23.
Instrument panel pad (RH)


·
Passenger’s air bag module (Refer to GROUP 52B, Driver’s, Front Passenger’s Air Bag Module(s) and Clock Spring ).


24.
Heater control panel assembly (Refer to GROUP 55A, Heater Control Assembly <Vehicles with manual air conditioner> or GROUP 55B, Semi Automatic Air Conditioner Control Panel Assembly <Vehicles with semi automatic air conditioner>)


·
Hood lock release handle (Refer to GROUP 42, Hood ).


·
Diagnosis connector


·
Steering wheel assembly (Refer to GROUP 37, Steering Wheel ).


·
Clock spring harness connector


·
Clock spring (Refer to GROUP 52B, Driver’s, Front Passenger’s Air Bog Module(s) and Clock Spring ).


·
Column switch harness connector


·
Steering wheel sensor harness connector <Vehicles with Active stability control system>


·
Key reminder switch connector


·
Turn-signal and lighting switch, Windshield wiper and washer switch (Refer to GROUP 54A, Column Switch ).


25.
Instrument panel

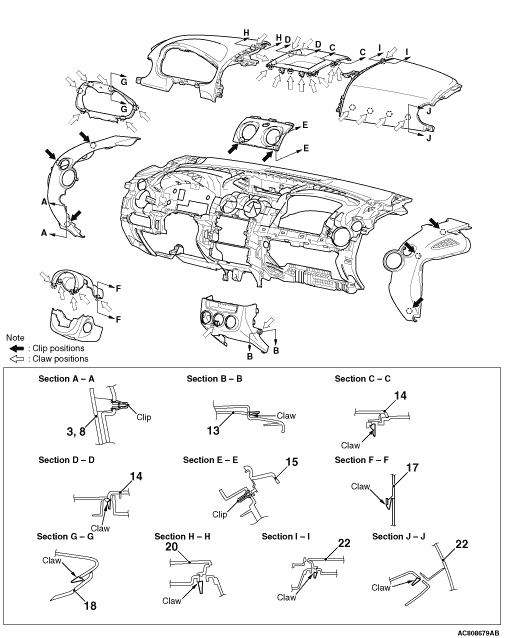

CLIP AND CLAW POSITIONS
