REMOVAL AND INSTALLATION


caution For the removal of the headlining, refer to GROUP 52B, Service Precautions and Side and Curtain Air Bag Module .
Pre-removal and Post-installation OperationFront Pillar Trim and Upper quarter trim Removal and Installation (Refer to GROUP 52A, Interior Trim <COLT>, <COLT CZ3>).

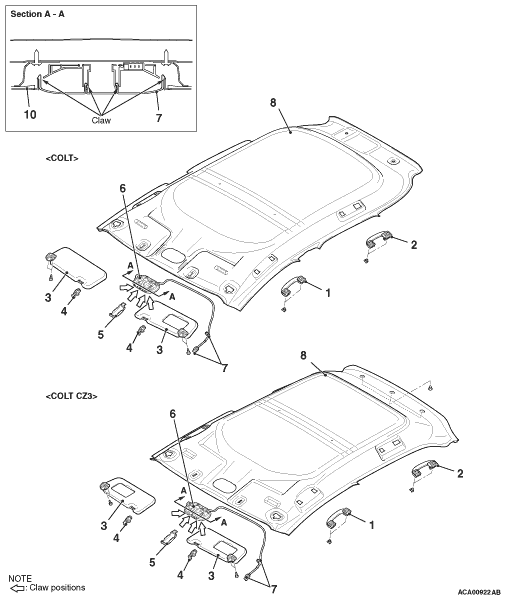

Removal steps
<<A>>
1.
 Assist grip
<<A>>
2.
 Assist grip with coat hanger


3.
 Sunvisor
<<B>>
4.
 Sunvisor holder
<<C>>
5.
 Room lamp cover
<<C>>
6.
 Room lamp assembly


7.
 Roof harness connector and harness clamp


·
 Front seat (passenger’s side) (Refer to ).


·
 Floor console (Refer to ).
<<D>>
8
 Headlining assembly

REMOVAL SERVICE POINTS

<<A>> ASSIST GRIP REMOVAL

Use a flat-tipped screwdriver to remove the plug of the assist grip. Then remove the assist grip by pulling it downward.

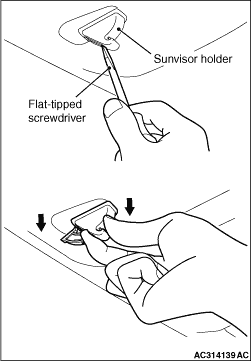

<<B>> SUNVISOR HOLDER REMOVAL

Use a flat-tipped screwdriver to unlock the plug of the sunvisor holder, and remove it using moderate pressure from the forefinger and thumb.

<<C>> ROOM LAMP COVER/ ROOM LAMP ASSEMBLY REMOVAL

Use special tool ornament remover (MB990784) to remove the room lamp cover. Then remove the room lamp assembly.

<<D>> HEADLINING ASSEMBLY REMOVAL
Take the removed headlining assembly out of the front door (passenger’s side) opening to the outside.
