1.
| caution |
Pay attention to keep from getting burned by hot door panel or tapes.
|
Use a hair drier to warm the tape.
|
|
|
2.Peel the tip of the tape with your finger, and then peel off the tape parallel to the application surface.
|
|
1.
| caution |
- The ambient temperature should be 20 to 30°C. Ensure that the working area is clean. Ideally, the tape application should be done at ambient temperature of 25°C.
- If ambient temperature is less than 15°C, heat the tape and application surface to a temperature of 20 to 30°C. If ambient temperature is 35°C or higher, cool down them. The adhesive property of the tape is deteriorated at low temperature, so the tape may come adrift easily. Meanwhile, it gets softened at hot temperature.
- When beginning to apply the tape, pay particular attention. If the end of the tape cannot be applied to the specified position with an accuracy of less than 1 mm, it may cause the poor appearance or adhesion.
- Use the special tool Stripe Tape Spatula (MB990528) to apply the tape with a steady pace and pressure. If you do not apply the tape with a steady pace or pressure, or abort the application, a shallow groove (lateral groove called as "Shock line") may be present on the tape surface. Meanwhile, if you apply it too quickly, air bubbles may be formed under the tape.
|
Wrap a soft cloth (synthetic fibre) around the tip of the special tool.
2.Use Parts Cleaner (MZ100387 or equivalent) to degrease the tape application surface.
3.Wipe away dirt from the tape.
|
|
4.
| caution |

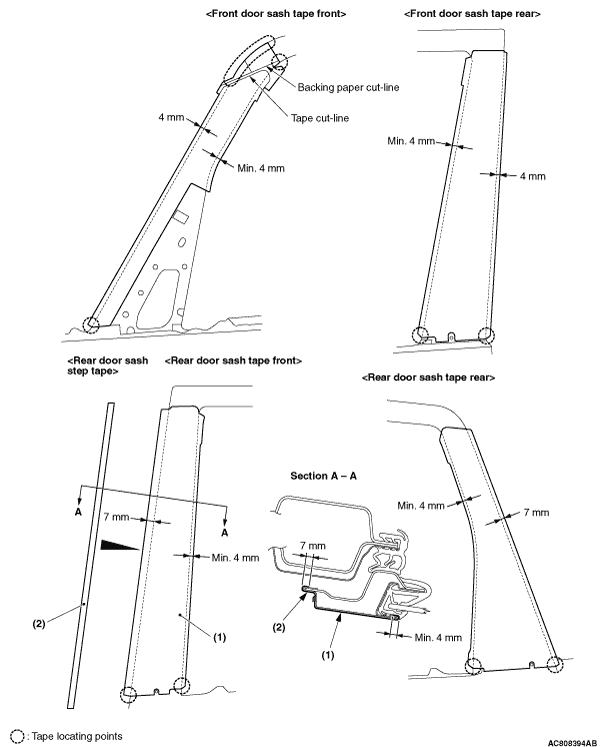

- As for the rear door sash front, apply the rear door sash tape front (1) first, next apply the rear door sash step tape (2) at the sash front part.
- Before applying a tape, remove the tape upper part as shown in the illustration (hatched area).
|
Apply the door sash tapes according to the procedures shown below:
(1)
Align a tape with specified locating points. If necessary, use a magnet to secure it.
(2)
As for the front door sash tape front, peel off the backing paper under the tape at the backing paper cut-line and apply the tape temporarily.
(3)
Peel off the backing paper and cut it as necessary.
(4)
While peeling off the remaining backing paper, press the tape by using the special tool (MB990528).
(5)
As for the rear door sash tape front, apply a tape to the plain surface (A) first. Next, apply it to the stepped surface (B) securely.
(6)
Remove unnecessary part of the tape at tape cut-line.
(7)
Press the folded area of the tape at 3 steps securely (60°, 120° and holding), rolling in toward the vehicle inside direction.
|
)
)
)
)
)
)
)
