Inspect the rear wiper motor by removing the harness connector with the motor attached to the vehicle.
|
|
|

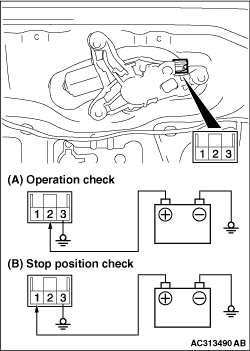

Connect the battery to the rear wiper motor as shown in the illustration (A) and check the motor operation.
|
|
|
1.Connect the battery to the rear wiper motor as shown in the illustration (A).
|
|
|
2.Disconnect the battery cable from the rear wiper motor while it is turning and then check to see that the motor stops.
|
|
|
3.Re-connect the battery as shown in Figure (B).
|
|
|
4.Check to see that the rear wiper motor runs and then stops at the automatic stop position.
|
)
)
)
