Inspect the windshield wiper motor by removing the harness connector with the motor attached
to the vehicle.
|
|

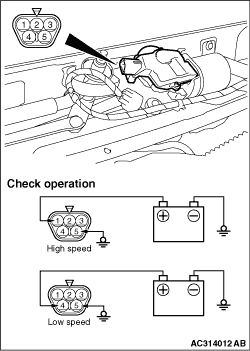

Connect the battery to the windshield wiper motor to inspect the operation of motor rotation
in low or high speed.
|
|

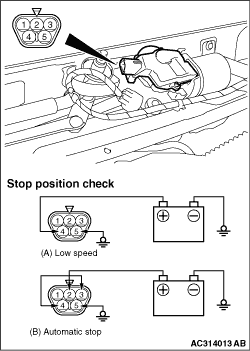

1.Connect the battery to the windshield wiper motor as shown in the illustration (A).
2.Run the windshield wiper motor at low speed, then disconnect the battery in the middle
of the motor turning and check to see that the motor stops.
3.As shown in the illustration (B), connect the terminals of the windshield wiper motor
connectors.
4.Check to see that the windshield wiper motor runs at low speed and then stops at the
automatic stop position.
|
|
|
Check the input signals (mist, intermittent, low speed and high speed) from the windshield
wiper switch. For troubleshooting, refer to GROUP 54B, Troubleshooting  .
|
)
)
