| Washer tank assembly removal |
|||
| · |
Washer tank (Refer to  ). |
||
| · |
Washer motor (Refer to ). |
||

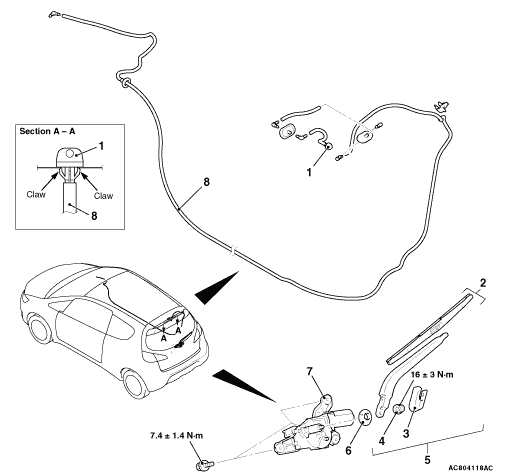

| Rear washer nozzle removal steps |
|||
| 1. |
Rear washer nozzle assembly |
||
| Rear wiper blade assembly removal steps |
|||
| 2. |
Rear wiper blade assembly |
||
| Rear wiper motor removal steps |
|||
| · |
Tailgate trim (Refer to GROUP 52A, Tailgate trim ). |
||
| 3. |
Cover |
||
| 4. |
Nut |
||
| >>A<< |
5. |
Rear wiper arm blade assembly |
|
| 6. |
Washer packing |
||
| 7. |
Rear wiper motor assembly |
||
| Rear washer hose removal steps |
|||
| · |
Splash shield (Refer to GROUP 42, Fender ). |
||
| · |
Cowl side trim, front scuff plate, rear scuff plate, quarter trim (Refer to GROUP 52A, Trims ). |
||
| · |
Headlining (Refer to GROUP 52A, Headlining ). |
||
| 8. |
Rear washer hose |
)
