REMOVAL AND INSTALLATION

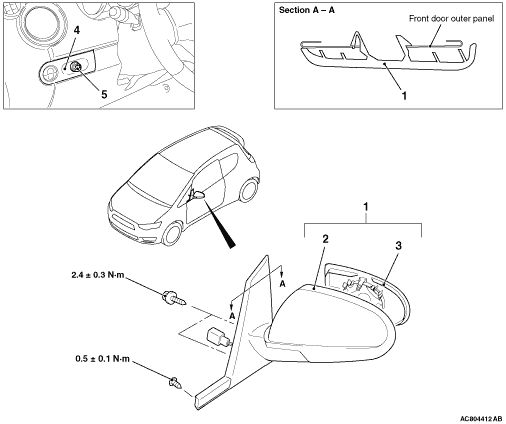

		Door mirror removal steps
	·	Delta cover (Refer to GROUP 52A, Trim ).
	1.	Door mirror assembly
	2.	Door mirror body assembly
<<A>>	3.	Mirror
		Remote controlled mirror switch removal steps
	·	Under cover (driver’s side) (Refer to GROUP 52A, Instrument panel ).
	4.	Switch bezel assembly
	5.	Remote controlled mirror switch

REMOVAL SERVICE POINT

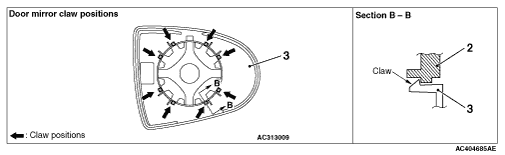

<<A>> MIRROR REMOVAL

caution

The claws of the mirror are prone to break when working in cold temperatures. Prior to work, use a hair drier or the like to warm up the mirror claws and its periphery to 20°C or higher. When the mirror is heated too quickly from its cold state, it may be broken.
