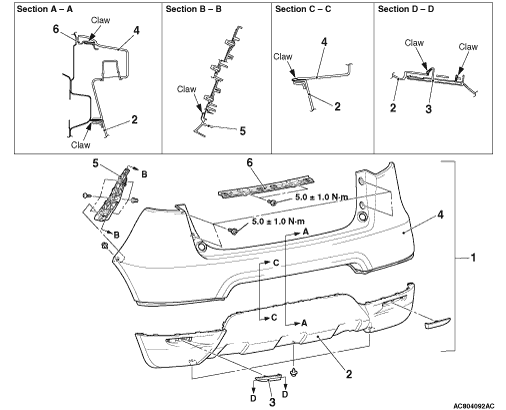

| Removal steps |
|||
| · |
Rear combination lamp (Refer to GROUP 54A, Rear combination lamp  ). |
||
| · |
Licence plate lamp (Refer to GROUP 54A, Licence plate lamp ). |
||
| 1. |
Rear bumper assembly |
||
| 2. |
Rear bumper extension |
||
| 3. |
Reflector |
||
| 4. |
Rear bumper face |
||
| 5. |
Rear bumper upper plate |
||
| 6. |
Rear bumper reinforcement |
