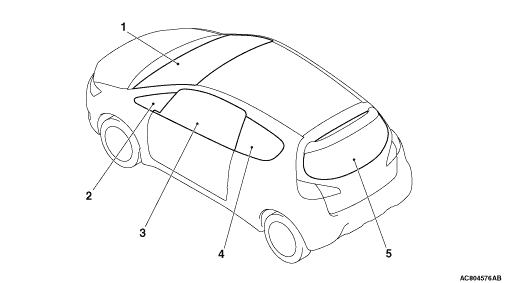

| No. |
Name |
Type |
Thickness (mm) |
Colour |
Visible ray transmissivity rate (%) |
| 1 |
Windshield |
Laminated glass |
4.96 |
Green |
75 |
| 2 |
Delta window glass |
Tempered glass |
3.1 |
Green |
80 |
| 3 |
Front door window glass |
3.1 |
Green |
80 |
|
| 4 |
Quarter window glass |
3.1 |
Green |
80 |
|
| Dark grey (privacy glass) |
35.5 |
||||
| 5 |
Tailgate window glass |
3.5 |
Green |
78 |
| note | The visible ray transmissivity rate (%) is a reference value. |
