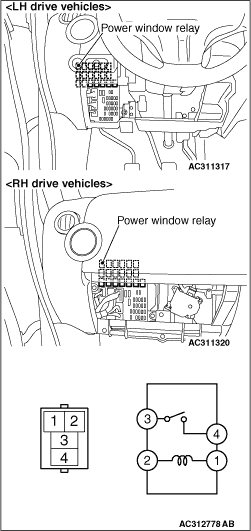

POWER WINDOW RELAY CHECK

Battery voltage Tester connection Specified condition Not applied 3 - 4 Open circuit Connect terminal No.2 and the positive battery terminal. Connect terminal No.1 and the negative battery terminal. 3 - 4 Continuity (Less than 2 Ω)
