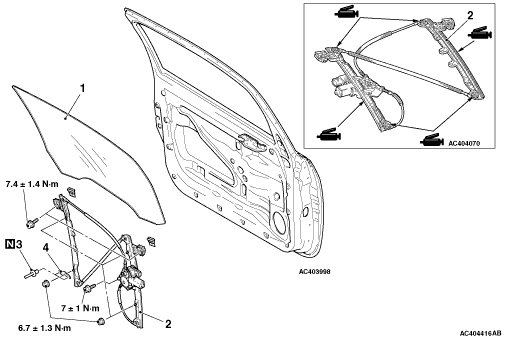

1.Remove the door window glass installation bolts.
|
|
2.
| caution |
If tinting film is adhered to the door window glass, attach special tool window glass holder (MB990480) to the outside of the glass to prevent the film from peeling off.
|
Lift the door window glass, and attach special tool window glass holder (MB990480) to the glass as shown to prevent the glass from falling.
3.Remove the window regulator.
|
|
Use a drill (4.0 mm) to make a hole in the rivet to break it, and then remove the rivet.
|
|

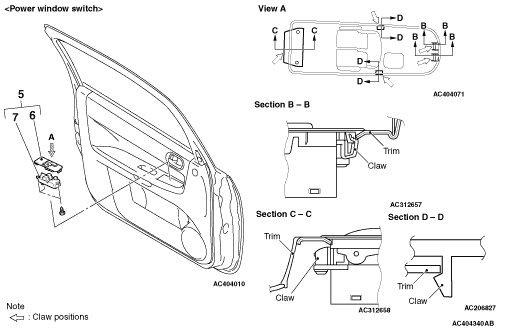

Insert special tool ornament remover (MB990784) as shown to remove the power window switch panel assembly.
|
|
|

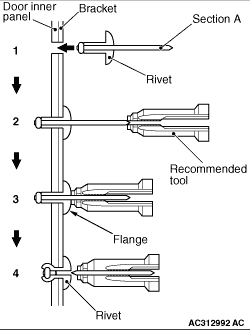

Use recommended tool shown in the illustration to connect the rivet by the following procedure.
|
|
1.Insert the rivet into the base material (door inner panel and bracket).
2.Place the recommended tool over section A of the rivet.
3.While pushing the flange surface of the rivet with the recommended tool, press the handle of the tool.
4.The thin part of section A of the rivet will break and the rivet will then be attached.
|
|
|
When the following procedures are carried out, make the power window switch learn the fully closed position of the power window (Refer to  ).
|
|
|
- Power window regulator removal or replacement
- Power window switch removal or replacement
|
)
)
)
)
)
)
