DISASSEMBLY AND REASSEMBLY

Post-installation operation

Transmitter operation check

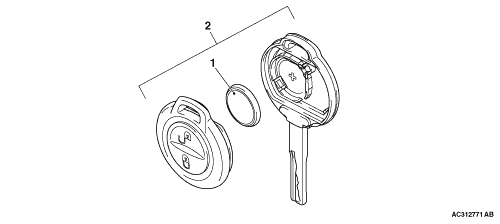

			Disassembly steps
<<A>>	>>A<<	1.	Battery
		2.	Transmitter assembly

DISASSEMBLY SERVICE POINT

<<A>> BATTERY REMOVAL

caution

Do not allow water or dust to enter the inside of the transmitter assembly when it is open. Also, do not touch the precision electronic device.

Use the special tool ornament remover (MB990784) to remove the transmitter cover, and then remove the battery from the key side of the transmitter assembly.

REASSEMBLY SERVICE POINT

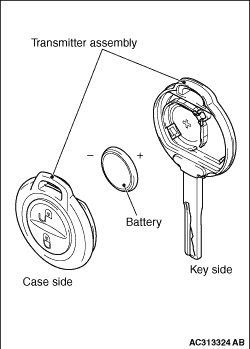

>>A<< BATTERY INSTALLATION

caution

Do not allow water or dust to enter the inside of the transmitter assembly when it is open. Also, do not touch the precision electronic device.

Install a new battery to the key side of the transmitter assembly with its (+) side facing towards the key side.
Battery required for replacement: Coin type battery CR2016
