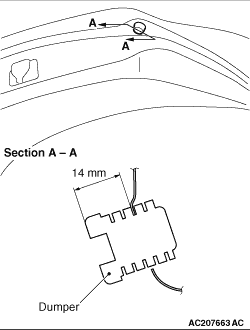

| note | If a rattling noise is heard due to the vibration of the tailgate when the vehicle is
being driven, adjust the damper height until the damper is seated on the vehicle body. |
|
Rotate the damper by using arrow mark on the damper as a guide to adjust the tailgate
height. The damper height is altered by roughly 4 mm when the damper is rotated once.
|
