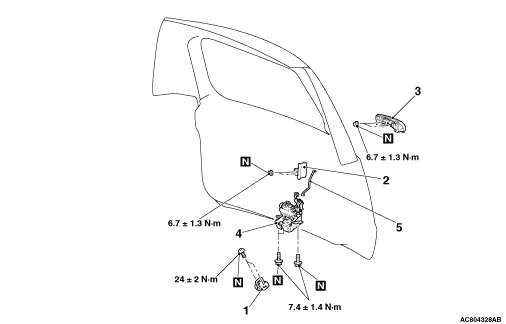

REMOVAL AND INSTALLATION <COLT>
Post-installation Operation
Tailgate Handle Play Check (Refer to
).
Striker removal
>>A<<
1.
Striker

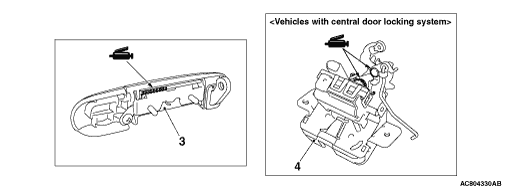

Tailgate outside handle removal steps
·
Tailgate trim (Refer to GROUP 52A, Tailgate Trim
).
2.
Tailgate outside handle plate
3.
Tailgate outside handle
Tailgate latch assembly removal steps
·
Tailgate trim (Refer to GROUP 52A, Tailgate Trim
).
4.
Tailgate latch assembly
5.
Tailgate open rod
INSTALLATION SERVICE POINT
>>A<< STRIKER INSTALLATION
Assemble so the distance between the centre of the striker and centre of the latch is ±1.5mm or less.
).)
)
)
