| note | If a rattling noise is heard due to the vibration of the door when the vehicle is being driven, adjust the damper height until the damper is seated on the vehicle body. |
|

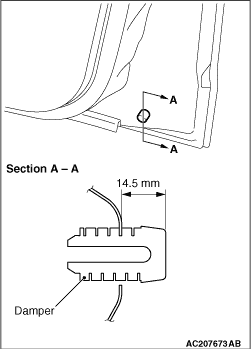

Use the arrow mark on the damper as a guide for making the damper seated on the body correctly, and rotate the damper to adjust the front door height. The damper height is altered by roughly 4 mm when the damper is rotated once.
|
