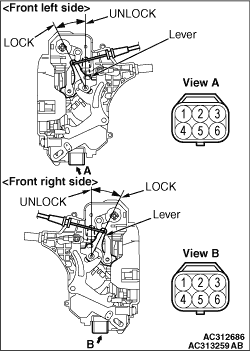

ACTUATOR OPERATION CHECK
Lever position
|
Battery connection
|
Lever operation
|
At the "LOCK" position
|
- Connect terminal No.4 and the negative battery terminal.
- Connect terminal No.6 and the positive battery terminal.
|
The lever moves from the "LOCK" position to the "UNLOCK" position.
|
At the "UNLOCK" position
|
- Connect terminal No.6 and the negative battery terminal.
- Connect terminal No.4 and the positive battery terminal.
|
The lever moves from the "UNLOCK" position to the "LOCK" position.
|
|
|
|
ACTUATOR SWITCH CHECK <DRIVER’S SIDE (LH DRIVE VEHICLES)>
Lever position
|
Tester connection
|
Specified condition
|
At the "LOCK" position
|
1 - 2
|
Continuity (Less than 2 Ω)
|
At the "UNLOCK" position
|
1 - 3
|
Continuity (Less than 2 Ω)
|
|
|
|
ACTUATOR SWITCH CHECK <DRIVER’S SIDE (RH DRIVE VEHICLES)>
Lever position
|
Tester connection
|
Specified condition
|
At the "LOCK" position
|
2 - 3
|
Continuity (Less than 2 Ω)
|
At the "UNLOCK" position
|
1 - 3
|
Continuity (Less than 2 Ω)
|
|
|
|
|
|

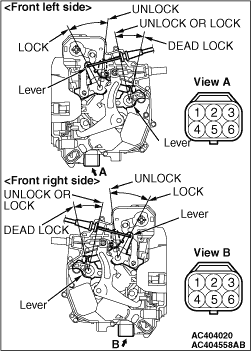

ACTUATOR OPERATION CHECK
Lever position
|
Battery connection
|
Lever operation
|
At the "LOCK" position
|
- Connect terminal No.6 and the negative battery terminal.
- Connect terminal No.5 and the positive battery terminal.
|
The lever moves from the "LOCK" position to the "DEAD LOCK" position.
|
At the "LOCK or DEAD LOCK" position
|
- Connect terminal No.4 and the negative battery terminal.
- Connect terminal No.6 and the positive battery terminal.
|
The lever moves from the "LOCK or DEAD LOCK" position to the "UNLOCK" position.
|
At the "UNLOCK" position
|
- Connect terminal No.6 and the negative battery terminal.
- Connect terminal No.4 and the positive battery terminal.
|
The lever moves from the "UNLOCK" position to the "LOCK" position.
|
|
|
|
ACTUATOR SWITCH CHECK <DRIVER’S SIDE>
Lever position
|
Tester connection
|
Specified condition
|
At the "LOCK" position
|
2 - 3
|
Continuity (Less than 2 Ω)
|
At the "DEAD LOCK" position
|
1 - 3, 2 - 3
|
Continuity (Less than 2 Ω)
|
At the "UNLOCK" position
|
1 - 3
|
Continuity (Less than 2 Ω)
|
|
|
)
)
