REMOVAL AND INSTALLATION <COLT>

Pre-removal Operation

Door Trim Assembly Removal (Refer to GROUP 52A, Door Trim ).

Post-installation Operation

Door Inside Handle Play Check (Refer to ).
Door Outside Handle Play Check (Refer to ).
Door Trim Assembly Installation (Refer to GROUP 52A, Door Trim ).

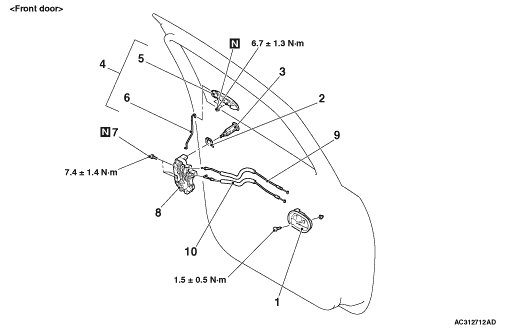

			Door handle and door latch assembly removal steps
	>>A<<	1.	Door inside handle
		·	Waterproof film (Refer to ).
		2.	Retainer
		3.	Key cylinder
		4.	Door outside handle assembly
		5.	Door outside handle
		6.	Outside handle rod
		7.	Screw
		8.	Door latch assembly
		9.	Inside lock cable
		10.	Inside handle cable

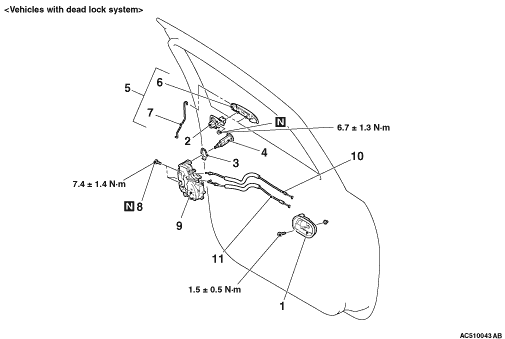

			Door handle and door latch assembly removal steps
	>>A<<	1.	Door inside handle
		·	Waterproof film (Refer to .)
		2.	Retainer with stopper <Vehicles with stopper>
		3.	Retainer
		4.	Key cylinder
		5.	Door outside handle assembly
		6.	Door outside handle
		7.	Outside handle rod
		8.	Screw
		9.	Door latch assembly
		10.	Inside lock cable
		11.	Inside handle cable

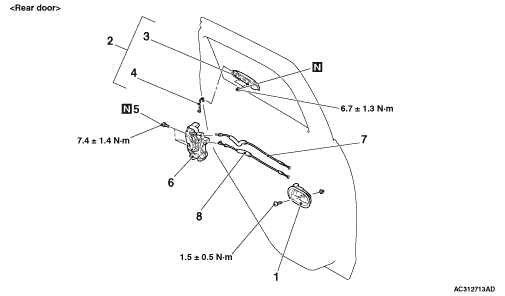

			Door handle and door latch assembly removal steps
	>>A<<	1.	Door inside handle
		·	Waterproof film (Refer to ).
		2.	Door outside handle assembly
		3.	Door outside handle
		4.	Outside handle rod
		·	Rear lower sash (Refer to ).
		5.	Screw
		6.	Door latch assembly
		7.	Inside lock cable
		8.	Inside handle cable

INSTALLATION SERVICE POINT

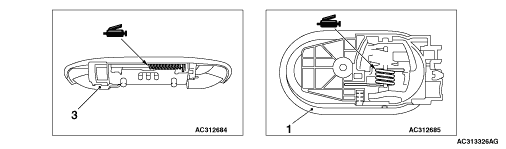

>>A<< DOOR INSIDE HANDLE INSTALLATION

When connecting the inside cable to the door inside handle, ensure that the door latch and the inside handle are unlocked.
