REMOVAL AND INSTALLATION <COLT CZ3>


Post-installation Operation
  • Front Door Fit Adjustment (Refer to ).
  • Adjustment of Door Height (Refer to ).




Damper removal


1.
 Damper

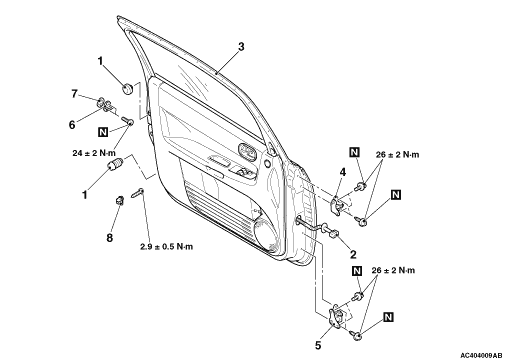

Door assembly removal steps


·
 Cowl Side Trim (Refer to GROUP 52A, Interior Trim .)


·
 Front pillar pad (Refer to .)


2.
 Harness connector


3.
 Door assembly


4.
 Door upper hinge


5.
 Door lower hinge



Striker removal steps

>>A<<
 6.
 Striker


7.
 Striker shim



Door switch removal


8.
 Door switch

INSTALLATION SERVICE POINT

>>A<< STRIKER INSTALLATION

Align the centre of the striker and latch within ±1.5 mm, and install.
