REMOVAL AND INSTALLATION <COLT>
Post-installation Operation
Door Fit Adjustment (Refer to
).
Adjustment of Door Height (Refer to
).

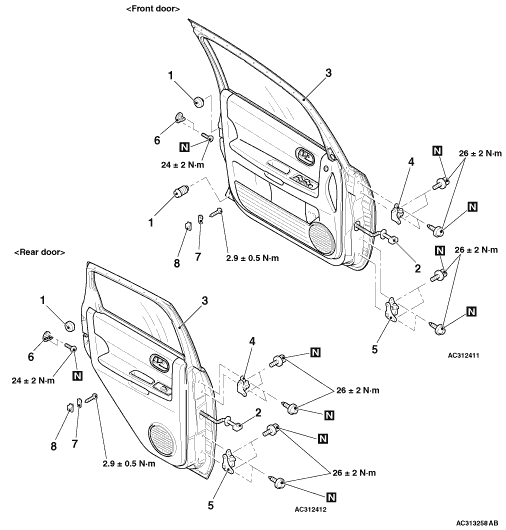

Damper removal
1.
Damper
Door assembly removal steps
·
Cowl Side Trim <Front door> (Refer to GROUP 52A, Interior Trim
).
·
Front pillar pad <Front door> (Refer to
).
2.
Harness connector
3.
Door assembly
4.
Door upper hinge
5.
Door lower hinge
Striker removal
>>A<<
6.
Striker
Door switch removal steps
7.
Door switch cover
8.
Door switch
INSTALLATION SERVICE POINT
>>A<< STRIKER INSTALLATION
Align the centre of the striker and latch within ±1.5 mm, and install.
).).)
)
