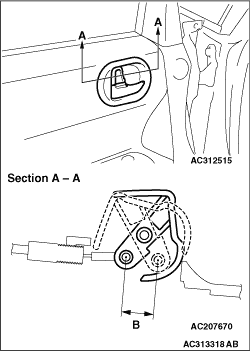

1.Check that the door inside handle play is within the standard value range.
Standard value (B): 5 - 22 mm
2.Check the door inside handle and door latch assembly, and replace them if they are
out of the standard value. Refer to  .
|
|
|
1.Remove the door trim assembly. Refer to GROUP 52A, Door Trim .
|
|
2.Check that the stroke of the door inside handle lock knob satisfies the standard value.
Standard value (B): 19.5 ± 0.5 mm
|
|
3.If it is outside the standard value, adjust the stroke of the inside handle lock knob
by using the outer cable end, which connects the inside handle lock knob to the inside lock cable.
|
)
)
)
