Remove the tailgate window glass using the same procedure as for the windshield. (Refer to  ).
|
|
|
1.
| caution |
Leave the degreased parts for 3 or more minutes to dry well, before starting on the next step. Do not touch the degreased parts.
|
Use Parts Cleaner (MZ100387 or equivalent) to clean the inside edge of the tailgate window glass and the tailgate flange.
|
|
|
2.

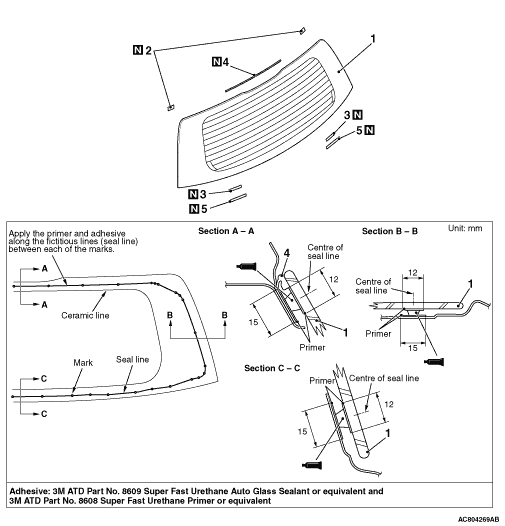

Install the tailgate dam lower, the tailgate dam upper, the glass stopper and the fasteners as shown in the illustration.
|
|
3.Install the fasteners to the specified positions on the tailgate flange.
|
|
|
1.Apply the primer and adhesive.
|
|
|
2.Install the tailgate window glass in the same way as for the windshield installation (Refer to ).
|
)
)
)
