ADJUSTMENT OF HOOD HEIGHT

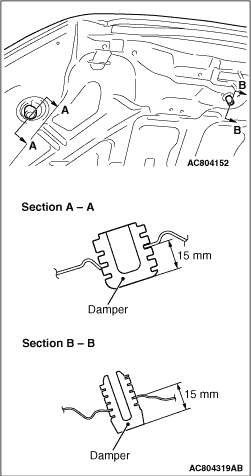

Turn the damper to the shown dimension to adjust the hood height. If the hood height is still not even, turn the damper again until the height is even. note The damper height is altered by roughly 4 mm when the damper is rotated once.
