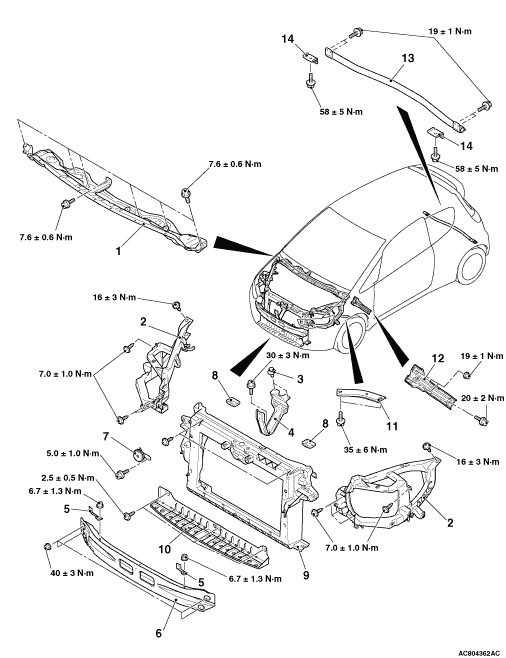

Cowl top panel removal steps
|
|
|
·
|
Windshield wiper motor assembly (Refer to GROUP 51, Windshield Wiper  .)
|
|
|
1.
|
Cowl top panel
|
|
|
|
Headlamp support removal steps
|
|
|
·
|
Front bumper assembly (Refer to GROUP 51, Front Bumper .)
|
|
|
·
|
Headlamp assembly (Refer to GROUP 54A, Headlamp .)
|
|
|
2.
|
Headlamp support side
|
|
|
3.
|
Front end structure stay mounting clip
|
|
|
·
|
Hood latch (Refer to .)
|
|
|
4.
|
Front end structure stay
|
|
|
5.
|
Front end structure bracket
|
|
|
6.
|
Front end beam
|
|
|
·
|
Ambient temperature sensor (Refer to GROUP 55B, Sensor .)
|
|
|
·
|
Air cleaner intake duct (Refer to GROUP 15, Air Cleaner <Except
1500 MPI-T/C>, <1500 MPI-T/C>.)
|
|
|
7.
|
Horn
|
|
|
8.
|
Radiator lower bracket
|
|
|
9.
|
Headlamp support centre
|
|
|
10.
|
Air guide panel
|
|
|
|
Front suspension axle side plate removal
|
|
|
11.
|
Front suspension axle side plate <1500 MPI-T/C>
|
|
|
|
Upper frame to front pillar brace removal steps
|
|
|
·
|
Splash shield (Refer to .)
|
|
|
12.
|
Upper frame to front pillar brace <1500 MPI-T/C>
|
|
|
|
Rear end crossmember removal steps
|
|
|
·
|
Rear bumper assembly (Refer to GROUP 51, Rear Bumper .)
|
|
|
13.
|
Rear end crossmember <1500 MPI-T/C>
|
|
|
14.
|
Rear end crossmember bracket <1500 MPI-T/C>
|
)
