REMOVAL AND INSTALLATION <COLT>


Pre-removal and Post-installation Operation <LHD>
  • Cowl Side Trim (Driver’s Side) (Refer to GROUP 52A, Interior Trim ).
  • Scuff Plate (Driver’s Side) (Refer to GROUP 52A, Interior Trim ).
  • Centre Pillar Lower Trim (Driver’s Side) (Refer to GROUP 52A, Interior Trim ).
  • Front Seat Belt Lower Bolt (Driver’s Side) (Refer to GROUP 52A, Front Seat Belt ).
  • Rear End Trim (Refer to GROUP 52A, Interior Trim ).
  • Quarter Lower Trim (Driver’s Side) (Refer to GROUP 52A, Interior Trim ).

 Pre-removal and Post-installation Operation <RHD>
  • Cowl Side Trim (Driver’s Side, Passenger’s Side) (Refer to GROUP 52A, Interior Trim ).
  • Scuff Pate (Driver’s Side, Passenger’s Side) (Refer to GROUP 52A, Interior Trim ).
  • Centre Pillar Lower Trim Removal and Installation (Driver’s Side, Passenger’s Side) (Refer to GROUP 52A, Interior Trim ).
  • Rear Seat Removal and Installation (Refer to GROUP 52A, Rear Seat Assembly ).
  • Front Seat Belt Lower Bolt (Refer to GROUP 52A, Front Seat Belt ).
  • Rear End Trim (Refer to GROUP 52A, Interior Trim ).
  • Quarter Lower Trim (Passenger’s Side) (Refer to GROUP 52A, Interior Trim ).
  • Turn up the floor carpet rear.

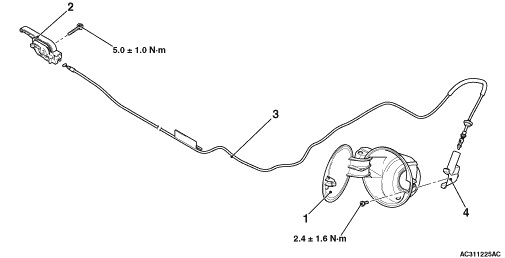

Removal steps


1.
 Fuel filler lid panel assembly


2.
 Fuel filler lid lock release handle

>>A<<
 3.
 Fuel filler lid lock release cable


4.
 Fuel filler hook assembly

INSTALLATION SERVICE POINT

>>A<< FUEL FILLER LID LOCK RELEASE CABLE INSTALLATION

Engage the end of the fuel filler lid lock release cable into the fuel filler hook assembly.
