REMOVAL AND INSTALLATION

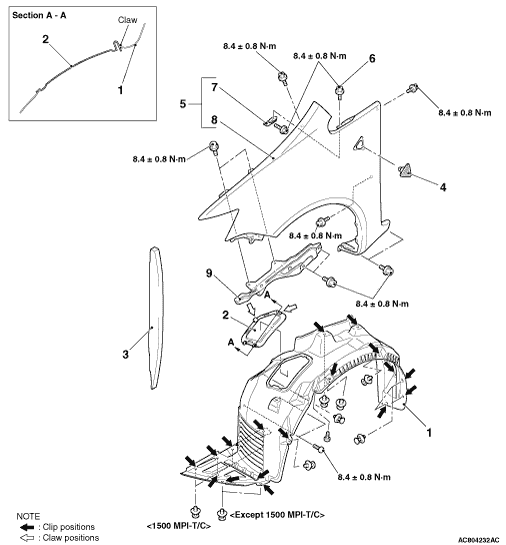

Splash shield removal steps 1. Splash shield 2. Inspection cover Fender removal steps 1. Splash shield 3. Front pillar pad <Except 1500 MPI-T/C> · Hood assembly (Refer to .) · Front deck garnish (Refer to GROUP 51, Windshield Wiper .) · Front side bracket (Refer to GROUP 51, Front Bumper .) · Headlamp assembly (Refer to GROUP 54A, Headlamp .) · Headlamp support assembly (Refer to <COLT>, <COLT CZ3>.) <<A>> >>A<< 4. Side turn signal lamp · Side air dam <1500 MPI-T/C> (Refer to GROUP 51, Side Air Dam .) 5. Front fender assembly 6. Front fender bracket mounting bolts 7. Front fender bracket 8. Front fender 9. Front fender reinforcement assembly

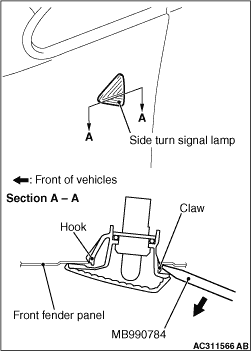

Insert the special tool ornament remover (MB990784) as shown to compress the hook and disengage the claw. Then remove the side turn signal lamp.

First, engage the hook in the fender panel, and then engage the claw to install the side turn signal lamp.
