DISASSEMBLY AND REASSEMBLY

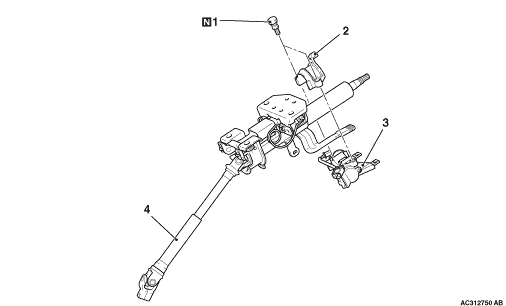

			Disassembly steps
<<A>>	>>A<<	1.	Steering lock bolt
	>>A<<	2.	Steering lock bracket
	>>A<<	3.	Steering lock cylinder assembly
		4.	Steering column shaft assembly

DISASSEMBLY SERVICE POINT

<<A>> STEERING LOCK BOLT REMOVAL

1.Drill in the steering lock bolt a hole deep enough for the tap to stand.
2.Use the recommended tool screw extractor set (MB992678) or equivalent to remove the steering lock bolt.

REASSEMBLY SERVICE POINT

>>A<< STEERING LOCK CYLINDER ASSEMBLY/STEERING LOCK BRACKET/STEERING LOCK BOLT INSTALLATION

caution

The steering lock bracket and bolts must be replaced with new ones when the steering lock is installed.

1.When installing the steering lock cylinder assembly and steering lock bracket to the steering column shaft assembly, temporarily install the steering lock in alignment with the column boss.

2.After checking that the lock works properly, tighten the steering lock bolt until the head twists off.
