REMOVAL AND INSTALLATION


warning
  • Before removing the steering wheel and driver’s air bag module assembly, refer to GROUP 52B - Service Precautions () and Driver’s Air Bag Module and Clock Spring ().
  • After adjusting the steering angle, always perform calibration to make TCL/ASC-ECU learn the neutral position of the steering wheel sensor (Refer to GROUP 35C, On-vehicle Service - Steering Wheel Sensor Calibration ). <Vehicles with TCL/ASC>
Pre-removal Operation
  • Steering Wheel and Driver’s Air bag Module Assembly Removal (Refer to ).
  • Under Cover (Driver’s side) Removal (Refer to GROUP 52A - Instrument Panel ).

 Post-installation Operation
  • Under Cover (Driver’s side) Installation (Refer to GROUP 52A - Instrument Panel ).
  • Steering Wheel and Driver’s Air bag Module Assembly Installation (Refer to ).

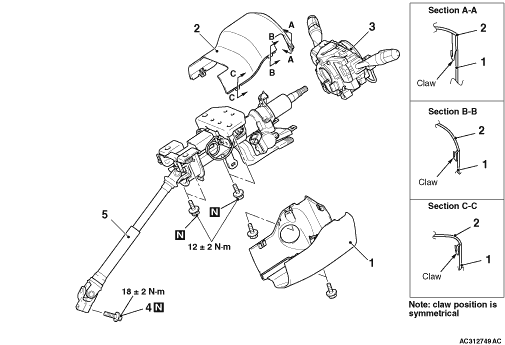

Removal steps


1.
 Steering column lower cover


·
 Combination meter face bezel (Refer to GROUP 54A - Combination Meter ).


2.
 Steering column upper cover


·
 Peripheral connectors and clamps of the steering column assembly

>>B<<
 3.
 Clock spring and column switch assembly.

>>A<<
 4.
 Steering gear and steering column shaft assembly connection


5.
 Steering column shaft assembly

INSTALLATION SERVICE POINTS

>>A<< STEERING GEAR AND STEERING COLUMN SHAFT ASSEMBLY CONNECTION

Insert the bolt connecting the steering column assembly with the steering gear into the non-threaded bolt hole.

>>B<< CLOCK SPRING AND STEERING COLUMN SWITCH ASSEMBLY INSTALLATION
After installing the clock spring and steering column switch assembly, align the centre position of the clock spring (Refer to GROUP 52B - Driver’s Air Bag Module and Clock Spring ).
