REMOVAL AND INSTALLATION
Pre-removal and post-installation Operation
Cowl Side Trim Removal and Installation (Refer to GROUP 52A, Trim - Interior Trim
<COLT>,
<COLT CZ3>).

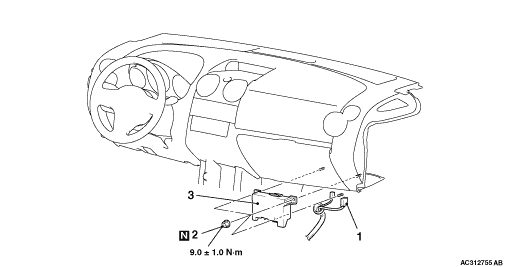

Removal steps
1.
Electric power steering-ECU connector (4 pieces)
2.
Electric power steering-ECU equipment nut (one of three nuts is an earth nut).
3.
Electric power steering-ECU
<COLT>, <COLT
CZ3>). <COLT>, <COLT
CZ3>).)
