Tool
|
Number
|
Name
|
Use
|
|

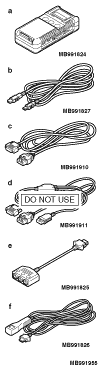

MB991955
- MB991824
- MB991827
- MB991910
- MB991911
- MB991825
- MB991826
|
M.U.T.-III sub-assembly
- Vehicle Communication Interface (V.C.I.)
- M.U.T.-III USB cable
- M.U.T.-III main harness A (Vehicles with CAN communication system)
- M.U.T.-III main harness B (Vehicles without CAN communication system)
- M.U.T.-III measurement adapter
- M.U.T.-III trigger harness
|
| caution |
For vehicles with CAN communication,
use M.U.T.-III main harness A to send simulated vehicle speed. If you connect M.U.T.-III main
harness B instead, the CAN communication does not function correctly.
|
Electrical power steering check (Diagnosis code display, data list display and actuator
test display by M.U.T.-III)
|
|
MB991223
- MB991219
- MB991220
- MB991221
- MB991222
|
Harness set
- Check harness
- LED wiring harness
- LED wiring harness adapter
- Probe
|
Continuity check and voltage measurement at harness wire or connector
- Contact pressure inspection at connector pin
- Power supply circuit inspection
- Power supply circuit inspection
- Commercial tester connection
|
|
MB992006
|
Extra fine probe
|
Commercial tester connection
|
|
MB991897
|
Ball joint remover
|
Knuckle and tie rod end ball joint disconnection
| note |
Conventional steering linkage puller, MB991406, MB990635 or MB991113 can also be used
|
|
|
MB990326
|
Preload socket
|
Tie rod end ball joint turning torque check
|
|
MB990784
|
Ornament remover
|
Cover removal
|
|
MB990228 or MB991006
|
Preload socket
|
Steering gear total pinion torque check and adjustment
|
|
MB990803
|
Steering wheel puller
|
Steering wheel disconnection
|
)
)
)
)
)
)
)
)
