PARKING BRAKE SWITCH CHECK


caution Do not apply grease or lubricant to the switch and the switch installation section to avoid malfunction of the switch. In addition, do not use gloves which have grease on them.

1.Remove the floor console assembly (Refer to GROUP 52A - Floor Console Assembly ).

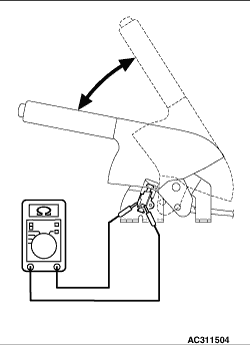

2.Check for continuity between the parking brake switch terminal and the switch mounting bolt.
Check condition
 Normal condition
When parking brake lever is pulled.
 Continuity exists
(2 Ω or less)
When parking brake lever is released.
 No continuity
