BRAKE PEDAL
Sport pedal pads have been adopted. <1500 T/C>

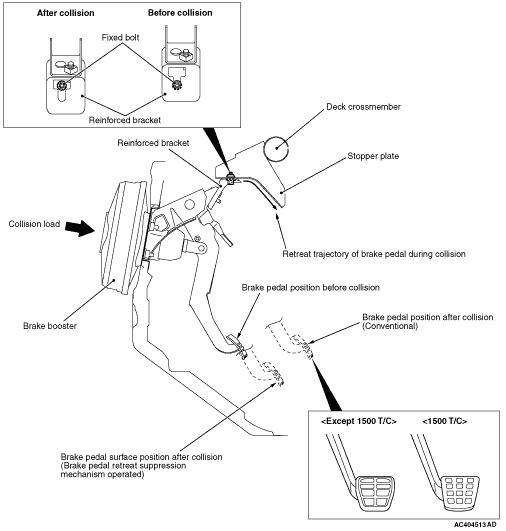

The brake pedal retreat suppression mechanism that restraints the retraction of the brake pedal during frontal collision has been adopted in order to reduce the shock to the driver’s feet.
If the brake booster is forced back by the retreating engine body during frontal collision, the fixing bolt on the brake pedal bracket is separated from the reinforced bracket. After separation, the reinforced bracket is forced to move back and downward along the stopper plate slope of the deck crossmember, preventing the brake pedal from moving back and upward.
)
