REAR BRAKE

Brakes with the following specifications have been adopted for the rear.

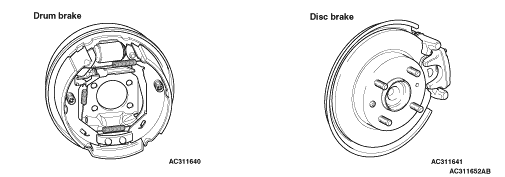

The 8-inch leading trailing type drum brake has been adopted. <1100 and 1300>
The 1-piston solid disc brake (S4-S34P) has been adopted. <1500 and 1500 T/C: Standard equipment, 1100 and 1300: Optional equipment>
An audible wear indicator that informs the driver of application limit has been adopted onto the rear brake pads.

DISC BRAKE NOMENCLATURE

No.	Item	Content
1	Brake disc type	S: Solid
2	Brake size (Minimum applicable disc wheel)	4: 14-inch
3	Number of pistons	S: 1 (Floating type)
4	Piston size (Rounded integral value)	34: Φ 34 mm
5	Parking brake	P: Parking brake mechanism integrated
