FRONT BRAKE

Brakes with the following specifications have been adopted for the front brakes.

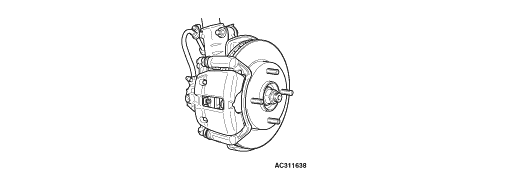

The 1-piston ventilate disc brake (V4-S54) has been adopted. <Except 1500 T/C>
The 1-piston ventilate disc brake (V5-S54) has been adopted. <1500 T/C>
An audible wear indicator that informs the driver of application limit has been adopted onto the front brake pads.

DISC BRAKE NOMENCLATURE

No.	Item	Content
1	Brake disc type	V: Ventilated
2	Brake size (Minimum applicable disc wheel)	4: 14-inch 5: 15-inch
3	Number of pistons	S: 1 (Floating type)
4	Piston size (Rounded integral value)	54: Φ 54 mm
