Check that the ABS warning lamp, brake warning lamp and TCL/ASC indicator lamp illuminates
as follows.
| note |
The brake warning lamp is used as EBD warning lamp.
|

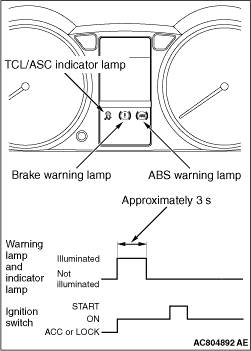

1.When the ignition switch is turned to the "ON" position, the ABS warning lamp, brake
warning lamp and TCL/ASC indicator lamp illuminates for approximately 3 seconds* and
then go out.
| note |
*: ABS warning lamp may stay ON until the vehicle speed reaches a few km/h.
As far as the TCL/ASC-ECU stores any diagnosis code related to the wheel speed sensor malfunction
or the motor malfunction as past trouble, the TCL/ASC-ECU continues illuminating ABS warning
lamp until it verifies that the malfunction for that code is resolved (Startup check).
|
2.If the illumination is other than the above, check the diagnosis codes.
|
)
