| caution |

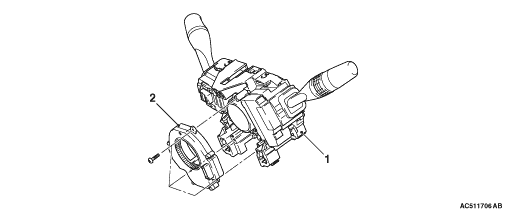

- When centring the clock
spring, always remove the clock spring from the column switch in advance. Otherwise, the sensor
may be damaged.
- If the centre of the clock spring is not correctly aligned, the steering wheel may
not be turned fully or the cable inside the clock spring may be broken, causing the SRS air
bag to be inoperative or operated incorrectly.
- Before removing the steering wheel/air bag module assembly, refer to GROUP
52B - Service Precautions
 and Air Bag Module Clock
Spring .
- When the steering wheel sensor is replaced, always carry out calibration to make
ASC-ECU learn the neutral point. (Refer to .)
|
)
