REMOVAL AND INSTALLATION


caution
  • Do not use an impact wrench.
  • Do not drop or shock the G and yaw rate sensor.
  • When the G and yaw rate sensor is replaced, always carry out calibration to make TCL/ASC-ECU learn the neutral point (Refer to ).
Pre-removal operation
  • Floor Console Assembly Removal (Refer to GROUP 52A - Floor Console Assembly .)

 Post-installation operation
  • Floor Console Assembly Installation (Refer to GROUP 52A - Floor Console Assembly .)

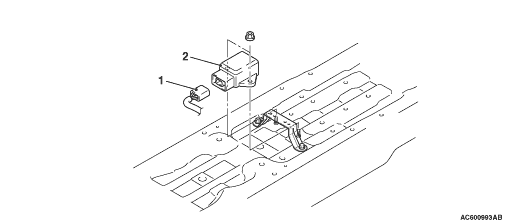

Removal steps


1.
 Harness connector


2.
 G and yaw rate sensor
