REMOVAL AND INSTALLATION

caution

The vehicle speed detection encoder collects any metallic particle easily, because it is magnetised. Make sure that the encoder should not collect any metallic particle. Check that there is not any trouble prior to reassembling it.

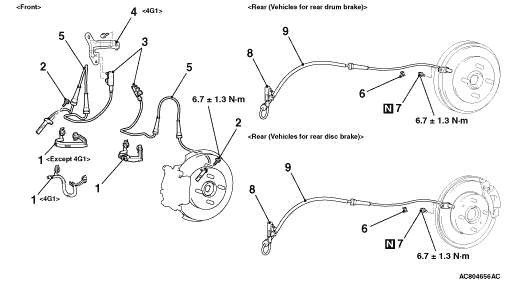

		Front wheel speed sensor removal steps
>>A<<	1.	Front wheel speed sensor heat protector
	2.	Bolt (front wheel speed sensor and knuckle connection)
	3.	Front wheel speed sensor connector
	4.	Front wheel speed sensor bracket <4G1>
	5.	Front wheel speed sensor
		Rear wheel speed sensor removal steps
	6.	Clip
	7.	Bolt (rear wheel speed sensor and trailing arm assembly connection)
	8.	Rear wheel speed sensor connector
	9.	Rear wheel speed sensor

note

The vehicle speed detection encoder is integrated with the front wheel bearing and the rear hub assembly, which cannot be disassembled.

INSTALLATION SERVICE POINT

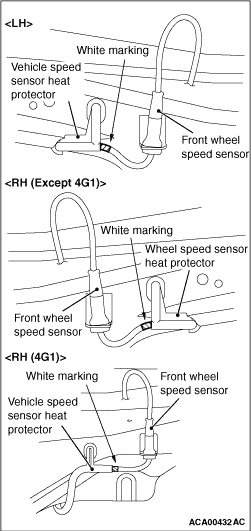

>>A<< FRONT WHEEL SPEED SENSOR HEAT PROTECTOR INSTALLATION

Install the front wheel speed sensor to the wheel speed sensor heat protector as shown in the figure.
