BRAKE PAD CHECK



 1.
caution If there is a significant difference in thickness between the brake pads at right and left, check the sliding area and the run-out of the brake disc (Refer to ).

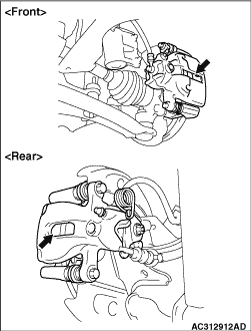

Visually check the thickness of brake pad from the inspection hole of the caliper body.
Standard value:

    11.2 mm <Front (Except 1500 T/C)>
    10.5 mm <Front (1500 T/C)>
    10.0 mm <Rear>
Limit: 1.5 mm
2.If the brake pad thickness is less than the limit value, replace the brake pad (Refer to ).
