REMOVAL AND INSTALLATION


Pre-removal Operation
  • Loosening the Parking Brake Cable Adjusting Nut (Refer to GROUP 36 - On-vehicle Service, Parking Brake Lever Stroke Check and Adjustment ).
  • Brake Fluid Draining

 Post-installation Operation
  • Brake Fluid Filling and Air Bleeding (Refer to ).
  • Parking Brake Lever Stroke Adjustment (Refer to GROUP 36 - On-vehicle Service, Parking Brake Lever Stroke Check and Adjustment ).

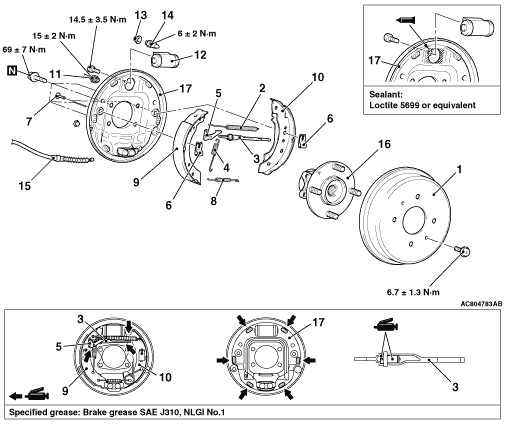

Removal steps
<<A>>
1.
 Brake drum


2.
 Piston spring


3.
 Adjuster assembly


4.
 Shoe lever spring


5.
 Auto adjuster lever


6.
 Shoe hold-down spring


7.
 Shoe hold-down pin


8.
 Anchor spring


9.
 Shoe and lining assembly


10.
 Shoe and lining and pin assembly


11.
 Brake pipe connection


12.
 Wheel cylinder assembly


13.
 Rear brake cap


14.
 Bleed screw


15.
 Parking brake rear cable connection


16.
 Rear wheel hub assembly


17.
 Backing plate

REMOVAL SERVICE POINT

<<A>> BRAKE DRUM REMOVAL

Use M8×1.25 bolts as shown to remove the brake drum by tightening them evenly.
