REMOVAL AND INSTALLATION


Pre-removal Operation
  • Loosening the Parking Brake Cable Adjusting Nut (Refer to GROUP 36 - On-vehicle Service - Parking Brake Lever Stroke Check and Adjustment ).
  • Brake Fluid Draining

 Post-installation Operation
  • Brake Fluid Filling and Air Bleeding (Refer to ).
  • Parking Brake Lever Stroke Adjustment (Refer to GROUP 36 - On-vehicle Service - Parking Brake Lever Stroke Check and Adjustment ).

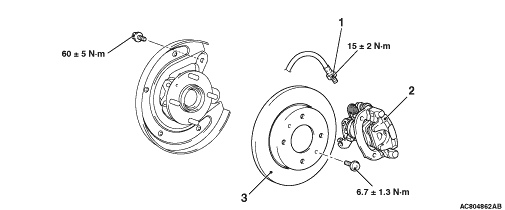

Removal steps


·
 Parking brake rear cable connection (Refer to GROUP 36 - Parking Brake Cable )


1.
 Brake hose connection


2.
 Rear brake caliper assembly


·
 Brake disc run-out check and correction (only at installation) (Refer to ).


3.
 Rear brake disc
